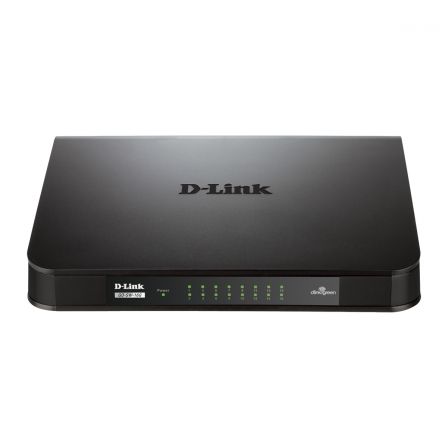

ACCESORIO ORDENADOR D-LINK GO-SW-16G SWITCH
63,36€
- "especificaciones técnicas
- Fìsico
- 16 gigabit ethernet
- Industry-first plastic case for better heat dissipation and a compact size
- Fanless design for silent operation
- Rendimiento
- Ieee 802.3x flow control
- Auto mdi/mdi-x crossover for all ports
- Full/half-duplex for ethernet/fast ethernet speeds
- Supports 9,216 bytes jumbo frames
- Eficiencia energética
- Innovative d-link green ethernet technology conserves energy
- Link status detection reduces power usage
- Cable length detection uses energy more efficiently
- 802.3az eee hardware implementation reduces power consumption significantly
- Rohs compliant
- Easy installation
- Plug-and-play installation saves you time
- General
- 16 10/100/1000 gigabit ports
- Standards
- Ieee 802.3 10base-t ethernet
- Ieee 802.3u 100base-tx fast ethernet
- Ieee 802.3ab 1000base-t gigabit ethernet
- Ansi/ieee 802.3 nway auto-negotiation
- Ieee 802.3x flow control
- Data tranfer rates
- Ethernet:
- 10 mbps (half duplex)
- 20 mbps (full duplex)
- Fast ethernet:
- 100 mbps (half duplex)
- 200 mbps (full duplex)
- Gigabit ethernet:
- 2000 mbps (full duplex)
- Network cables
- 10base-t:
- Utp cat 3, 4, 5/5e (100 m max)
- Eia/tia-586 100-ohm stp (100 m max)
- 100base-tx, 1000base-t:
- Utp cat 5/5e (100 m max)
- Eia/tia-568 100-ohm stp (100 m max)
- Funcionalidad
- D-link green features
- Ieee 802.3az energy efficient ethernet (eee)
- Link status detection power saving
- Cable length detection power saving
- Lan features
- Back pressure at half-duplex operation
- Auto mdi/mdix
- Wire speed reception and transmission
- Store-and-forward switching method
- 8k mac addresses
- 2 mbits ram for data buffering
- Jumbo frames: 9216 bytes
- Capacidad de conmutación
- Go-sw-16g - 32 gbps
- Port packet filtering
- 10m: 14,880 pps
- 100m: 148,800 pps
- 1000m: 1,488,000 pps
- Leds
- Power led
- Go-sw-16g - 16 link/activity/speed leds (one per port)
- Power inputs
- Go-sw-16g - switching 12v/1a level v power adapter
- Consumo
- Power on (standby):
- Go-sw-16g - ac input: 2.64 watts
- Power max.:
- Go-sw-16g - ac input: 9.00 watts
- Mtbf
- Go-sw-16g - 319,267 hours
- Dimensiones
- Go-sw-16g - 231 x 158 x 46 mm
- Peso
- Go-sw-16g - 0.58 kg
Las características y prestaciones descritas en esta ficha estan sujetas a estándares de fabricación, pudiendo sufrir alteraciones o modificaciones sin aviso previo, así como posibles errores tipográficos.
